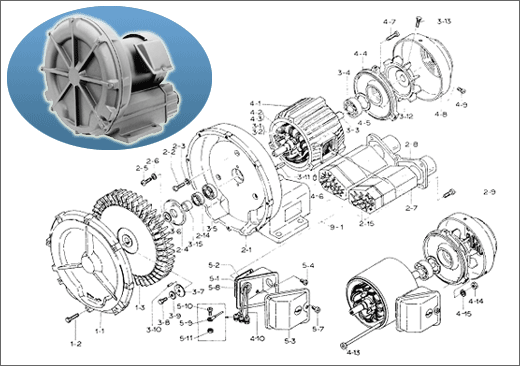

¢Â ºÐÇØÁ¶¸³µµ



NO. Name of part NO. Name of part NO. Name of part
1-1 Casing cover 3-4 Bearing-Rear 4-7 Bolt-Frame
1-2 Bolt-Casing Cover 3-5 Bearing-Front 4-8 Fan Cover
1-3 Impeller 3-6 Bearing-Shim 4-9 Bolt-Fan Cover
2-1 Casing 3-7 Plate Retaining 4-10 Wire
2-2 Bolt-End Cover 3-8 Bolt-Impeller 4-13 Bolt-Frame
2-3 Spring Washer 3-9 Tab Washer 4-14 Nut-Frame
2-4 End Cover 3-10 Pin 4-15 Spring Washer
2-5 Bolt-end Cover 3-11 Key-Impeller 5-1 Terminal Box (T-box)
2-6 Spring Washer 3-12 Motor Fan 5-2 Gasket T-box
2-7 silencer Assenbly 3-13 Bolt-Motor Fan 5-3 Cover T-box
2-8 Flange 3-15 Bushing 5-4 Bolt T-box
2-9 Bolt-Flange 4-1 Frame stator 5-7 Terminal Box(T-box)
2-14 Shaft Seal 4-2 Iron Core 5-8 Grommet T-box
2-15 silencer 4-3 Coil 5-9 Terminal
3-1 Rotor and Shaft
Assembly
4-4 Rear Housing 5-10 Bolt-Terminal
3-2 4-5 Spring Washer 5-11 Nut-terminal
3-3 4-6 Sleeve 9-1 nameplate

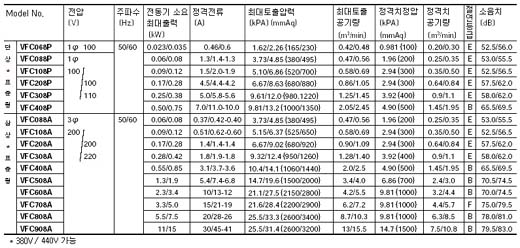

¡á TECHNICAL DATA
